Description
32 ultra bright smart RGB LED NeoPixels are arranged in a circle with 112mm (4.4") outer diameter. The rings are 'chainable' - connect the output pin of one to the input pin of another. Use only one microcontroller pin to control as many as you can chain together! Each LED is addressable as the driver chip is inside the LED. Each one has ~18mA constant current drive so the color will be very consistent even if the voltage varies, and no external choke resistors are required making the design slim. Power the whole thing with 5VDC.
Product Details
Beam Angle
120 degree
IP Rating
Non-Weatherproof
LED Quantity
32 LEDs
Strip Width
8mm (0.31in)
Dimmable
Yes
Conductors
3
Standards And Certifications
ISA Approved, RoHS Compliant

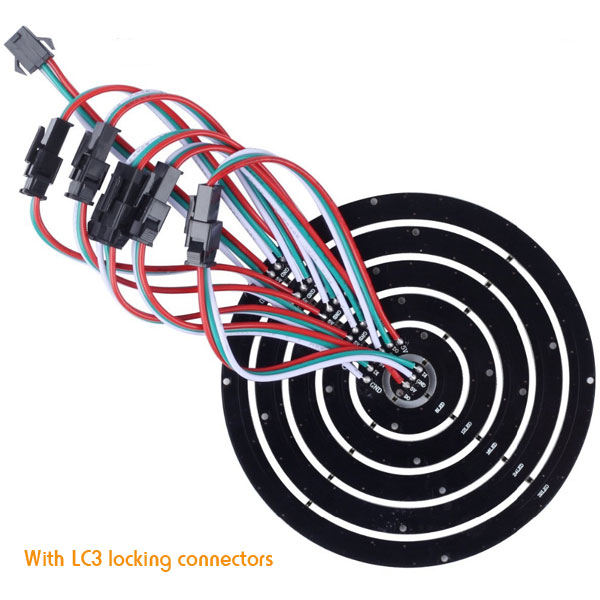

Connection Type
LC3
Thickness
3mm
LED Lifetime
30000 Hours
LED Color
RGB
Operating Temperature
-25~+60 °C (-13~+140 °F)
Outer diameter
112mm
Inner diameter
96mm
May ship with either WS2812B or SK6812-based LEDs. They are the same brightness, color and protocol
All specifications are subject to change without notice.
