3528 Outdoor Single Color LED Strip Light 12V - 5m - 76 lm/ft - Weatherproof (IP65 /IP67 /IP68)

Part Number: WFLS-300x-IP66

$ $49.95 In Stock

$49.95

write a review
80+CRI 12V 8mm


More Views





Stock Status: (over 500 in stock)



Please Choose:

Quantity Discounts (Wholesale Pricing)
Please send us an email

Discounts?

Our discount tiers are based on product price and quantity. The product price determines your tier.


Description

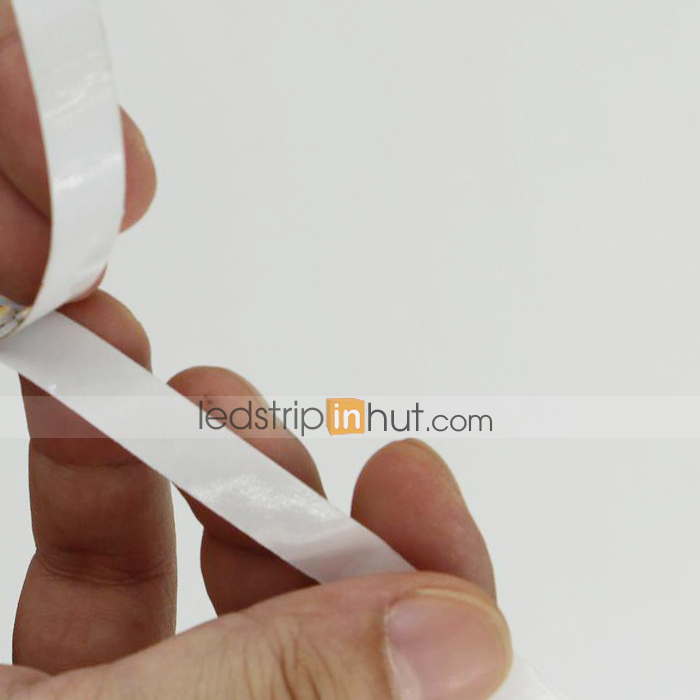

This flexible LED strip light produces brilliant illumination in a wide range of high-quality color tones, and is a top choice for ambient and accent lighting. A strong, ultra-thin silicone spray coating protects against water and debris. Peel-and-stick 3M™ adhesive backing enables fast, easy mounting. Backed by a lifetime warranty.

Features:
Dependable, industry-standard 3528 SMD LEDs
80+ CRI rating ensures vibrant, natural-looking color tones
18 LEDs/ft
12V input for operation with a vehicle; 24V for longer runs
Run 12V strips up to 10m; run 24V strips up to 15m
Strip width measures 8mm
Lifetime exceeds 50000 hours
CE certified and UL listed
Lifetime warranty

Warranties & Certifications

TECHNICAL DETAILS

Beam Angle180 degreeTypeFlexible Light Strips
DimmableYesIP RatingWeatherproof IP65 /IP67 /IP68
LED Lifetime50000 HoursLED quantity300 LEDs
Ambient Temperature-20~+45 °C (-4~+113 °F)Strip Width8mm (0.31in)
LED Type3528 SMDLEDs per Segment3
Total Length196.9in (16.40ft)Wire Length19.5in(49.5cm)
SMD Density18 SMDs/ft.Minimum Cut Length50mm (2in)
Operating Voltage Range9~14.8 VDCLength per Segment5cm (1.97in)
Standards And CertificationsCE/RoHS Compliant/UL ListedConnection TypePigtail /Wire Leads
Warranty5 YearWattage Total23 Watts
All specifications are subject to change without notice.

Dimension:

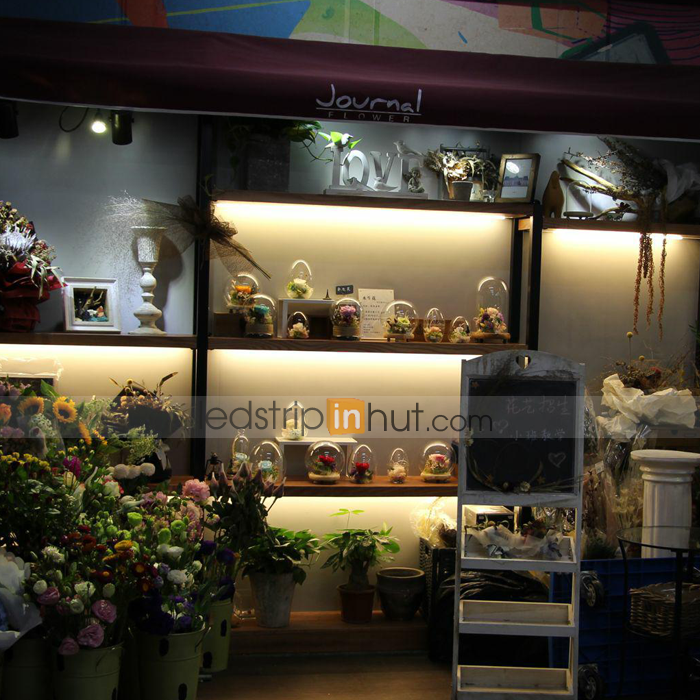

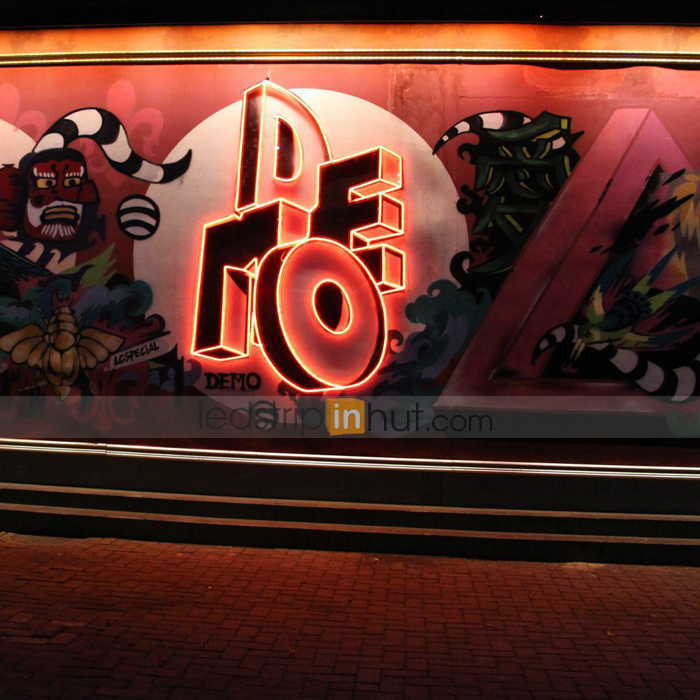

Applications
Task Lighting, LED Sign Lighting, LED Backlights, Accent Lighting, Off Grid Lighting,
Retail Lighting, Automotive Accent Lighting, Cove Lighting, Under-Cabinet Lighting,
Bias Lighting, LED Display Case Lighting, Trade Show Lighting, TV backlighting.

Waterproof series
1:Non-waterproof LED Strip: PCB (Printed Circuit Board) with 3M self-adhesive back.--(For Indoor).
2:Waterproof LED Strip--Surface Injection  IP65: PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, --(For Outdoor & Indoor).
3:Waterproof LED Strip--Silicon Tube IP67: PCB is encapsulated with silicon tube, with plastic fastener,better waterproof, --(For Outdoor).
4:Waterproof LED Strip--Whole Injection IP68: PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, --(For Outdoor).

Why choose LEDStripInHut LED Strip Light
1.PCB board: LEDStripInHut use at least 2 ounces pcb board, some are 3 ounces and 4 ounces for better dissipation. They are 100% pure copper. Our PCB board are CE, ROHS, UL listed.
2.LED Chip: LEDStripInHut mostly use Epistar brand led chips. We can do other brand chips according to customer’s request, for example, Cree, Samsung, Philips, San’an, Honglitronic and Smalite led chips. All of these led chips are in high quality. We only focus on high quality.
3.Color Rendering Index: LEDStripInHut use at least Ra80 led chips to do our led strip lights. When we test by the integrating sphere machine, it usually shows Ra83 for most of our led chips. We also use many Ra90 and Ra95 led chips for special projects. We can offer the test report for each batch of our led strip light.
4.Uniformity: LEDStripInHut always keep the same bin color temperature for all our led strip lights. It’s very important to our customers.
5.Waterproof Rating: We not only can offer traditional IP65, IP67, IP68 waterproof process, but also new silicone extrusion process for IP67, IP68 and silicone neon technique in dotless frosted encapsulations. Most of our waterproof mold are private mode.
6.Engineer Team: LEDStripInHut have our own engineer team. Whatever flexible strip pcb or rigid strip pcb, our engieer team can draw greber file for customers in the first time. We welcome all OEM and ODM orders from all over the world.
7.Service: Most of LEDStripInHut led strips are CE, ROHS, cUL and UL listed. We warranty 3-5 years. Welcome to visit our factory, or contact us: ledstripinhut@gmail.com
